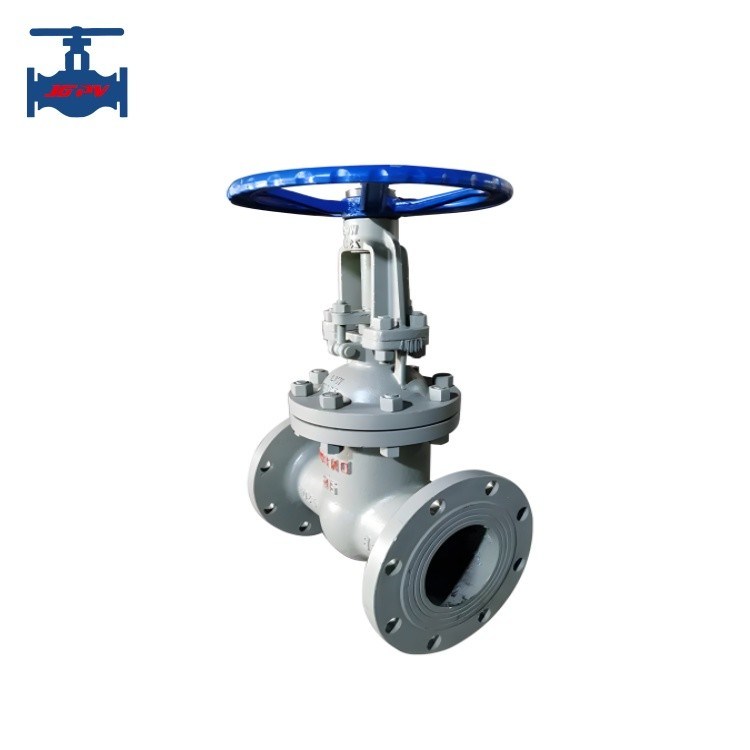

Cast Steel ASTM A216 WCB Bolted Bonnet Gate Valve Outside Screw And Yoke Gate Valve

Name: Cast Steel ASTM A216 WCB Bolted Bonnet Gate Valve Outside Screw And Yoke Gate Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41H-JGPV
Price: 3,028.50 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Nomor model: Z41H-JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Harga: USD59.5/pc - USD5999/pc

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 500pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                A216 WCB Gate Valve Bolted Bonnet, Bolted Bonnet Gate Valve A216 WCB, Outside Screw And Yoke Gate Valve


Standar atau non-standar:	Standar	Aplikasi:	Umum
Fitur Produk:	Produk katup industri	Tujuan:	Buka dan matikan pipa
Tipe Sedang:	Air, uap dan minyak	Suhu Kerja:	Suhu normal
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi	Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya
Garansi kualitas:	18 bulan	Dukungan yang disesuaikan:	Layanan OEM dan ODM tersedia
nama:	Katup Gerbang Batang Meningkat

Standar atau non-standar:	Standar
Aplikasi:	Umum
Fitur Produk:	Produk katup industri
Tujuan:	Buka dan matikan pipa
Tipe Sedang:	Air, uap dan minyak
Suhu Kerja:	Suhu normal
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi
Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya
Garansi kualitas:	18 bulan
Dukungan yang disesuaikan:	Layanan OEM dan ODM tersedia
nama:	Katup Gerbang Batang Meningkat

Cast Steel ASTM A216 WCB Bolted Bonnet Gate Valve Outside Screw And Yoke Gate Valve

Cast Steel ASTM A216 WCB Bolted Bonnet Outside Screw And Yoke Wedged Gate Valve

Product Introduction:

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Cast steel is mainly used for controlling the flow rate, pressure, and temperature of pipelines in various industrial automation production. For example: electricity, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc

Product Technical Parameters:

Type Number:		Z41H-JGPV
Nominal Pressure PN(MPa)		1.0 - 10.0
Nominal Diameter DN(mm)		50～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
Raw material		WCB, WCC, WC6, WC9
Medium suitable:		Water, steam, oil etc.
Working temperature		425≤℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

1. Cast steel gate valve with low flow resistance;

2. Cast steel gate valve with less erosion of the sealing surface by the medium;

3. Cast steel gate valve with compact structure, opening and closing are more effortless.

4. The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure.

5. As medium can flow toward either direction of the two sides, it is easy to be installed;

6. Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance,
