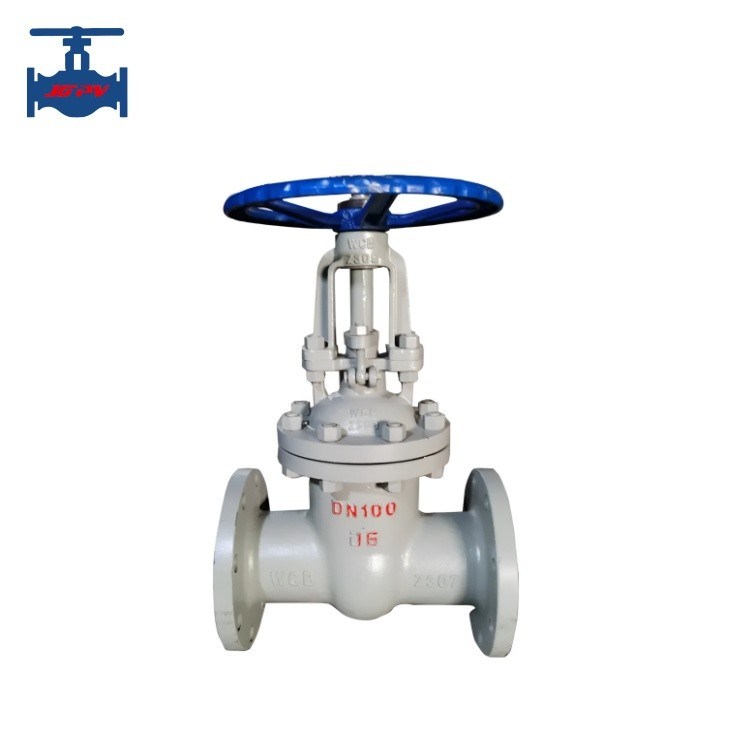

Cast Steel WCB Wedged Gate Valve Flange Connection For Water / Steam And Oil Use

Name: Cast Steel WCB Wedged Gate Valve Flange Connection For Water / Steam And Oil Use
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Z41H-JGPV
Price: 7,033.50 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Nomor model: Z41H-JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Harga: USD69.5/pc - USD13999/pc

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 500pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Cast Steel WCB Gate Valve, WCB Wedged Gate Valve, Wedged Gate Valve Flange Connection


Standar atau non-standar:	Standar	Aplikasi:	Umum
Tipe Sedang:	Air, uap dan minyak	Suhu Kerja:	Suhu normal
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi	Metode didorong:	Cara manual, pneumatik dan listrik
Bahan Tubuh:	baja cor	Tipe Segel:	Segel keras
Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya	Garansi kualitas:	18 bulan
nama:	Katup Gerbang Terjepit

Standar atau non-standar:	Standar
Aplikasi:	Umum
Tipe Sedang:	Air, uap dan minyak
Suhu Kerja:	Suhu normal
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi
Metode didorong:	Cara manual, pneumatik dan listrik
Bahan Tubuh:	baja cor
Tipe Segel:	Segel keras
Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya
Garansi kualitas:	18 bulan
nama:	Katup Gerbang Terjepit

Cast Steel WCB Wedged Gate Valve Flange Connection For Water / Steam And Oil Use

Cast Steel WCB Wedged Gate Valve Flange Connection For Water, Steam And Oil Use

Product Introduction:

Gate Valve is a particular type of valve product that regulates fluid flow in pipeline by opening or shutting a gate or wedge that moves vertically to let or limit fluid flow. Idealistically, it shouldn’t be utilized as a regulating valve or control valve. The gate travels perpendicular to the service flow, hence the name. The most typical and straightforward form of valves are gate valves. It cannot be employed to control flow. Gate valves are frequently opened and closed by spinning a handwheel or utilizing a bevel gear actuator, pneumatic actuator or a motorized actuator to rotate a threaded stem. The fluid can pass through the valve unhindered when the gate is fully lifted. The valve is effectively shut off when the gate is lowered because it obstructs the fluid passage.

Product Technical Parameters:

Type Number:		Z41H-JGPV
Nominal Pressure PN(MPa)		1.6
Nominal Diameter DN(mm)		DN50-DN600
Test pressure (MPa)	Strength (water)	2.4
	Sealing (water)	1.76
Raw material		WCB
Medium suitable:		Water, steam, oil
Working temperature		425≤℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features and applications:

Efficient draining and filling of tanks and vessels in various industries.
Handling of chemicals and petrochemicals, including hazardous compounds.
Integral part of sewage and wastewater treatment processes.
Control of water flow in irrigation systems for landscaping and agriculture.
