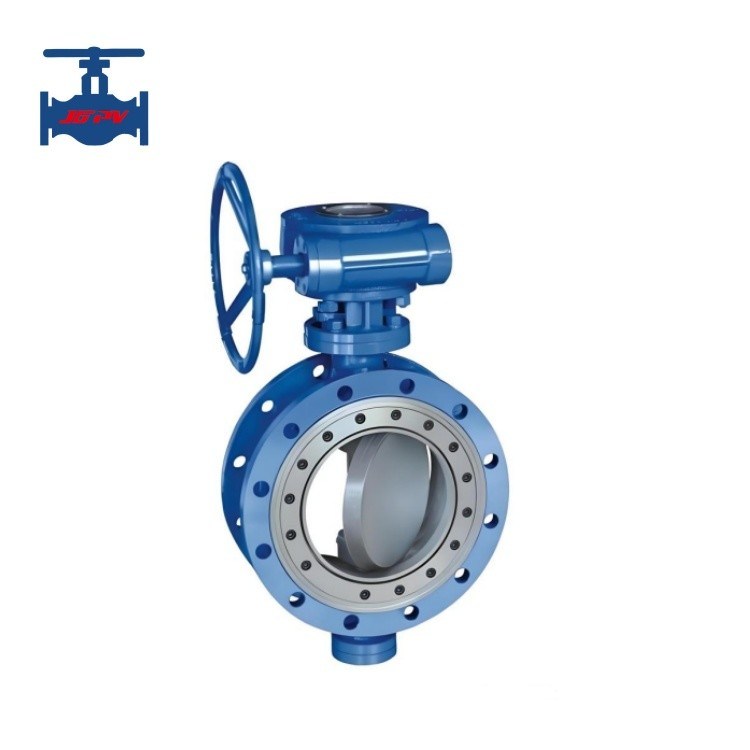

Tri-Eccentric Metal Hard-Sealed Butterfly Valve for Water Oil Steam

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Tri-eccentric butterfly valve for steam, Metal hard-sealed butterfly valve, Butterfly valve for water oil


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Tri-Eccentric Metal Hard-Sealed Butterfly Valve for Water Oil Steam

Tri-eccentric Metal Hard-Sealed Butterfly Valve

Highlight: Tri-eccentric metal hard-sealed butterfly valve

Product Attributes

Attribute	Value
Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Introduction

The Tri-eccentric metal hard-sealed butterfly valve features an integrated valve body and valve seat design, with the sealing surface overlay-welded using temperature-resistant and corrosion-resistant alloy materials. A multi-layer soft stacked sealing ring is fixed on the valve plate. Compared to traditional butterfly valves, this design offers superior high temperature resistance, effortless operation, and friction-free opening/closing. The sealing improves with increased torque during closing, enhancing performance and extending service life. Widely used in petroleum, chemical, metallurgical, and hydropower industries.

Technical Parameters

Parameter	Specification
Diameter nominal (DN)	50～1200mm
Pressure nominal (PN)	0.6～4.0MPa
Pressure test (MPa)	Strength test (Water): 0.9～6.0MPa Sealing test: 0.66～4.4MPa
Main parts	Body: Carbon steel, stainless steel, alloy steel Disc: Carbon steel, stainless steel, alloy steel Stem: 2Cr13 Packing: PTFE, flexible graphite Sealing: Stainless steel, PTFE, Hard alloy
Working temperature	-40～570℃
Medium application	Water, oil, steam, acid and alkali corrosive mediums
Connection way	Wafer and flange
Driven method	Lever, worm gear, pneumatic and electric actuators

Product Features

The tri-eccentric hard-sealed structure minimizes wear between valve seat and butterfly plate, with sealing that tightens as it closes.
Stainless steel sealing ring combines metal hard sealing with elastic sealing advantages, offering excellent performance in both low and high temperatures, plus corrosion resistance and long service life.
Butterfly plate sealing surface is overlay-welded with hard alloy for superior wear resistance and durability.
Large-size butterfly plates feature a truss structure for high strength, maximum flow area, and minimal flow resistance.
Available with bidirectional sealing functionality, installable in any orientation without medium flow direction restrictions.
