Stainless Steel Internal and External Thread Safety Valve with 18 Months Warranty and ISO14001 Certification

Rincian produk

Tempat asal: CINA

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                18 Months Warranty Safety Valve, Internal and External Thread Safety Valve, ISO14001 Certified Safety Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Stainless Steel Internal and External Thread Safety Valve with 18 Months Warranty and ISO14001 Certification

Stainless steel internal and external thread safety valve

Product Description

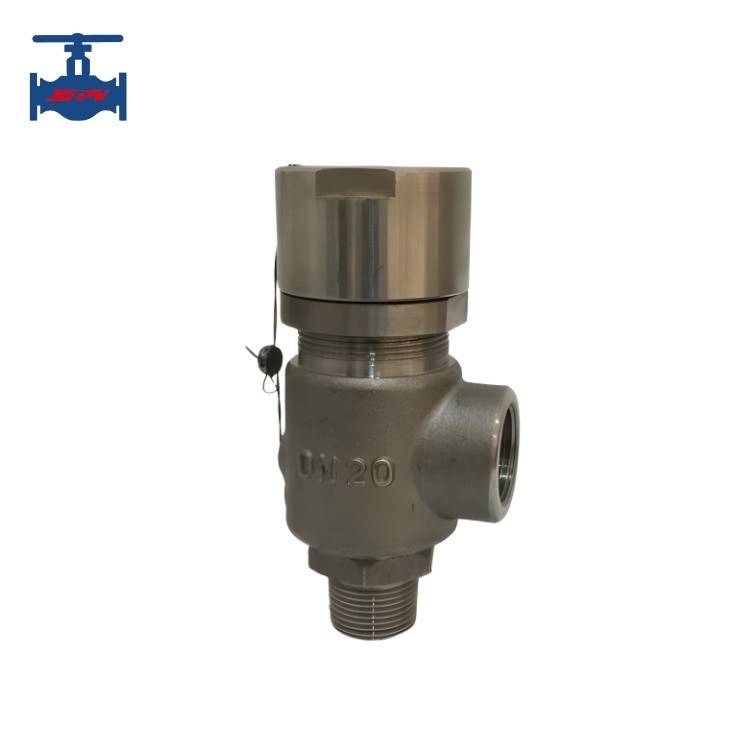

Stainless steel internal and external thread safety valve

Safety valve is a kind of automatic pressure relief device for pressure equipment, container cargo line. When the pressure in the protected system increases beyond the allowable value, the valve automatically opens, discharge part of the excess medium, to prevent the system pressure continues to rise, when the system pressure decreases to a specified value, the valve can automatically close, so as to ensure the normal operation of the system.

Technical Parameters

Parameter	Value
Nominal diameter DN(mm)	DN25
Nominal pressure PN(MPa)	1.6
Test pressure (MPa)	Strength test (Water): 2.4 Set pressure test (Air): 0.9
Main component	Body: 1Cr18Ni9Ti Bonnet: 1Cr18Ni9Ti Disc: 1Cr18Ni9Ti Spring: 50CrVA Stem: 1Cr18Ni9Ti
Applicable medium	Water, air, petroleum gas and weak corrosive medium
Working temperature	≤300℃
Connection method	Flange connection

Product Features

This type of safety valve designed for the equipment and pipeline of petroleum gas, air water and corrosive medium what the working temperature are less than 200℃.
Economic design with large displacement.
Disc is equipped with a backflush disc component, the plane structure of the disc and seat is easy to repair and rework.
Small setting pressure deviation, up to ±3%.
High quality spring steel, ensure the life and stability of the spring.
