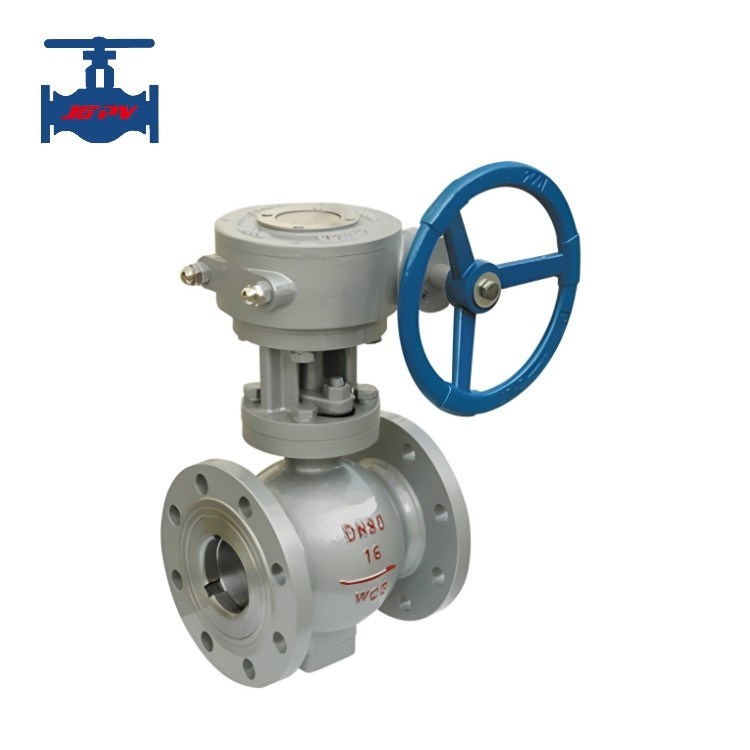

OEM ODM Flange End Ball Valve Stainless Steel Eccentric Hemispherical Valve With Side Entry

Name: OEM ODM Flange End Ball Valve Stainless Steel Eccentric Hemispherical Valve With Side Entry
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: Q340F-JGPV
Price: 4,534.90 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Nomor model: Q340F-JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Harga: USD69.9/Set to USD8999.9/Set

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 1000PCS Per Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                ODM Flange End Ball Valve, Flange End Ball Valve Stainless Steel, SS Eccentric hemispherical valve


Standar atau non-standar:	Standar	Aplikasi:	Umum
Keunggulan Produk:	Kontrol aliran dan perawatan mudah	Suhu Kerja:	Suhu normal dan suhu tinggi
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi	Ukuran Pelabuhan:	DN50-DN1400
Hubungan:	Flang	Garansi kualitas:	18 bulan
Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya	Dukungan yang disesuaikan:	Layanan OEM dan ODM tersedia
nama:	Katup Bola Ujung Flange Baja Tahan Karat

Standar atau non-standar:	Standar
Aplikasi:	Umum
Keunggulan Produk:	Kontrol aliran dan perawatan mudah
Suhu Kerja:	Suhu normal dan suhu tinggi
Aplikasi tekanan:	Tekanan rendah, tekanan sedang dan tekanan tinggi
Ukuran Pelabuhan:	DN50-DN1400
Hubungan:	Flang
Garansi kualitas:	18 bulan
Standar tes:	Uji kekuatan, uji penyegelan dan kebutuhan klien lainnya
Dukungan yang disesuaikan:	Layanan OEM dan ODM tersedia
nama:	Katup Bola Ujung Flange Baja Tahan Karat

OEM ODM Flange End Ball Valve Stainless Steel Eccentric Hemispherical Valve With Side Entry

WCB Stainless Steel Eccentric Hemispherical Valve With Side Entry

Product introduction:

Eccentric hemispherical valve is a common spherical valve where the contact between the hemispherical disc and the valve seat is different from that of a through hemispherical valve or a rotary ball valve. In eccentric hemispherical valves, the centerline of the hemispherical valve disc is not located on the centerline of the valve seat, thus achieving precise adjustment and control.

Eccentric hemispherical valve is a valve product widely used in Europe and America in recent years. It drives the eccentric hemisphere to rotate by rotating the worm gear (or electric) mechanism, thereby achieving the opening and closing of the valve. Low flow resistance, reliable sealing, and stable performance. Widely used in municipal sewage treatment, water supply, and other fluid control systems.

Product technical parameters:

Nominal Diameter DN (mm)		50 -1400
Nominal Pressure PN (MPa)		1.6 - 6.4
Test Pressure (MPa)	Strength (water)	2.4 - 9.6
	Enclose (Water)	1.76 - 7.04
Main Components	Body	WCB, CF8, CF8M, CF3, CF3M etc.
	Valve ball	WCB, CF8, CF8M, CF3, CF3M
	Seat	PTFE/Hard alloy
	Packing	Soft graphite, PTFE
Working temperature		≤300℃
Medium suitable		Water, oil, steam and weak corresive mediums
Connection		Flange connection
Operational method		Level, worm gear, pneumatic and electric actuator

Product features:

1. The water loss is zero. Adopting an eccentric structure, after the valve is opened, the flow channel is completely unobstructed and the head loss is zero. Can save a lot of energy.
2. Reliable sealing method. The soft sealing structure has self sealing performance, while the hard sealing structure has elastic compensation performance.
3. Wear resistance and long service life. After the ball valve is opened, the crown is offset inside the valve body and is not directly flushed by the medium.
4. Automatic cleaning function. The edge of the ball crown of the hard sealed eccentric hemispherical valve adopts a blade shape, which can not only scrape off dirt on the valve seat, but also cut off debris.
5. Quick opening and closing. The eccentric crankshaft can be opened and closed by rotating 90 degrees, with a short opening and closing time
6. Suitable for high flow rates. The straight passage and sturdy eccentric crankshaft make it suitable for high flow rates and vibration free.
