Class 150 4inch Lever Operated Floating Ball Valve with Flange Connection for High Temperature Applications

Rincian produk

Tempat asal: CINA

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Class 150 Floating Ball Valve, 4inch Floating Ball Valve, Lever Operated Floating Ball Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Class 150 4inch Lever Operated Floating Ball Valve with Flange Connection for High Temperature Applications

Class 150 4inch Lever Operated Cast Steel Two-Piece Floating Ball Valve

Designed for high temperature water, steam, and oil applications with flange connection.

Product Overview

The two-piece internal thread ball valve consists of valve body, valve ball, valve stem, valve seat and other components. The valve body features two hemispheres connected by threads with a spherical valve ball that rotates to control flow. Key characteristics include:

Simple yet robust construction
Excellent sealing performance
Easy operation with lever handle
Long service life in demanding applications

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	15-200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Robust construction for high temperature, high pressure, and corrosive media applications
Elastic sealing materials ensure reliable performance and extended service life
Excellent corrosion resistance for chemical, petroleum, and metallurgical industries
Heavy-duty operation with substantial opening/closing torque
Fixed flange connection method for secure installation
Ideal for large-diameter and high-pressure applications

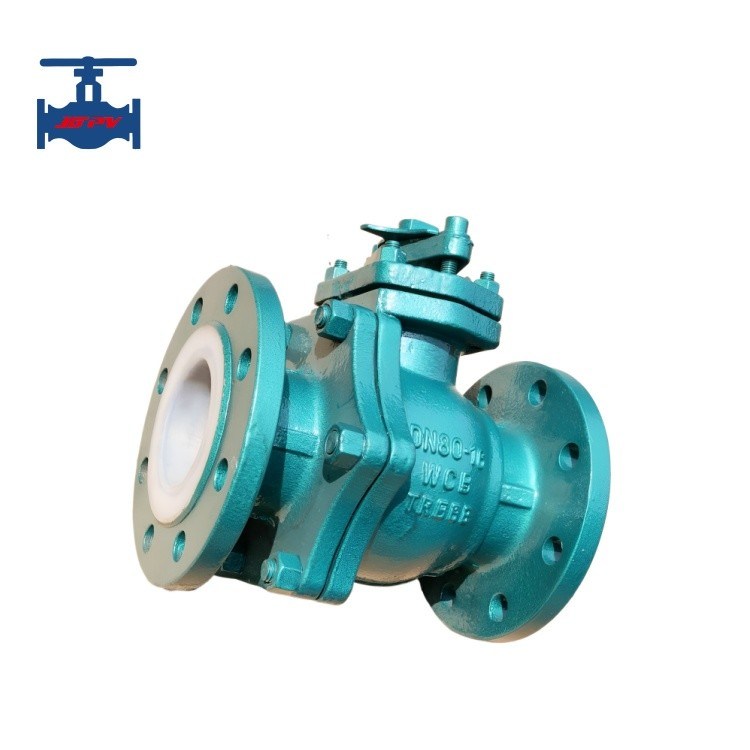

Product Images
