Digital Balancing Valve with Locking Device for HVAC Systems

Rincian produk

Tempat asal: CINA

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C, T/T, Western Union

Menyediakan kemampuan: 100 pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                Digital balancing valve for HVAC, HVAC balancing valve with lock, Locking device balancing valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Fungsi::	Tiriskan kondensat
Koneksi::	Berulir / bergelang / dilas	Standar atau non-standar::	standar
Cara mengalir::	Dua arah	Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan	Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan normal	Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Fungsi::	Tiriskan kondensat
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan normal
Garansi Kualitas::	18 bulan

Digital Balancing Valve with Locking Device for HVAC Systems

Digital Balancing Valve

Product Specifications

Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Threaded / Flanged / Welded
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

The SP15F digital locking balancing valve is a new type of energy-saving valve with special functions. Equipped with a digital display for opening degree, a digital locking device, and a small pressure-measuring valve for flow measurement, this valve allows intuitive adjustment to any position.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Digital control and precise adjustment enhance the operating efficiency and stability of the system
Reducing pipeline resistance improves the flow state of air and water in the system
Remote control via mobile apps enables remote adjustment and monitoring
Simple structure, convenient maintenance, long service life, and low cost

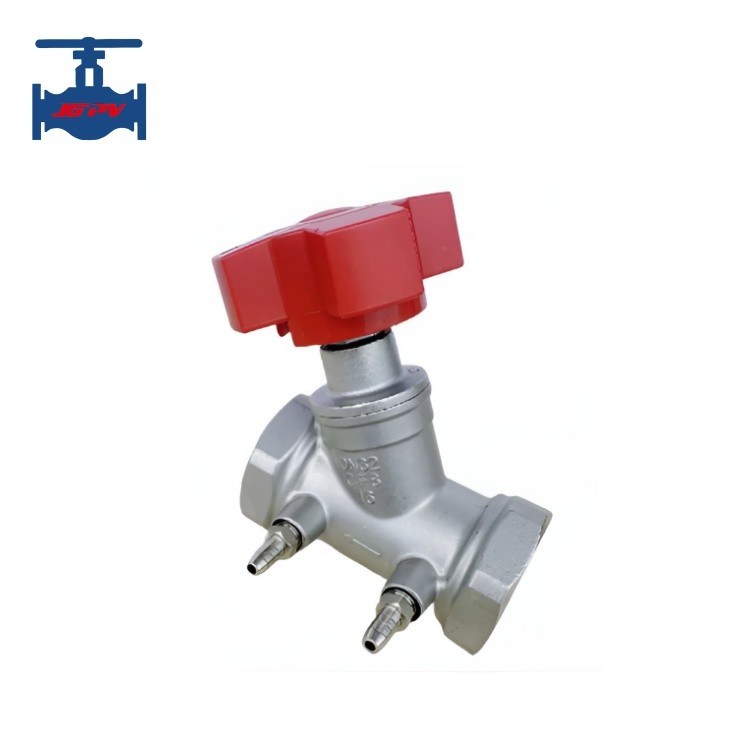

Product Images
