ISO Certified Static Balancing Valve with Digital Locking Device and 18 Months Warranty for HVAC Systems

Rincian produk

Tempat asal: CINA

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: T/T, L/C, Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                ISO Certified Static Balancing Valve, Digital Locking Device Balancing Valve, 18 Months Warranty Balancing Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

ISO Certified Static Balancing Valve with Digital Locking Device and 18 Months Warranty for HVAC Systems

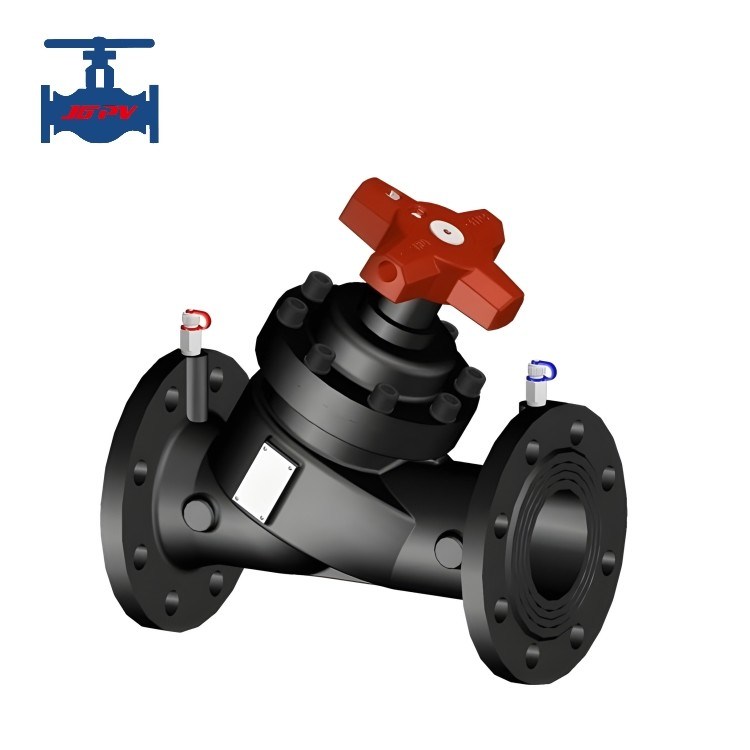

Static Balancing Valve

Product Overview

The new digital lock balance valve is an energy-saving valve with special functions featuring digital display and locking mechanisms. Designed for precise flow control in heating systems, it enables accurate pressure drop and flow rate adjustment to optimize thermal distribution in industrial and civil building heating networks.

Key Features

Precision adjustment capability with 1/10 turn resolution
Superior shut-off performance
Equal percentage characteristic curve for optimal flow control
Patented locking mechanism for secure settings
Fixed flow coefficient per rotation for simplified flow calculation
Digital display for real-time monitoring

Technical Specifications

Parameter	Value
Nominal Diameter DN (mm)	32~300
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Valve body: QT450-10 Bonnet: QT450-10 Disc: QT450-10 Shaft: 2Cr13 Seat: PTFE Sealing ring: EPDM
Working temperature	-10~100℃
Medium suitable	Water
Characteristic curve	Equal percentage

System Benefits

Eliminates temperature imbalances in heating systems by enabling precise flow distribution. Reduces energy consumption by preventing "large flow, small temperature difference" scenarios. Achieves both hydraulic balance and energy savings in pipeline networks.
