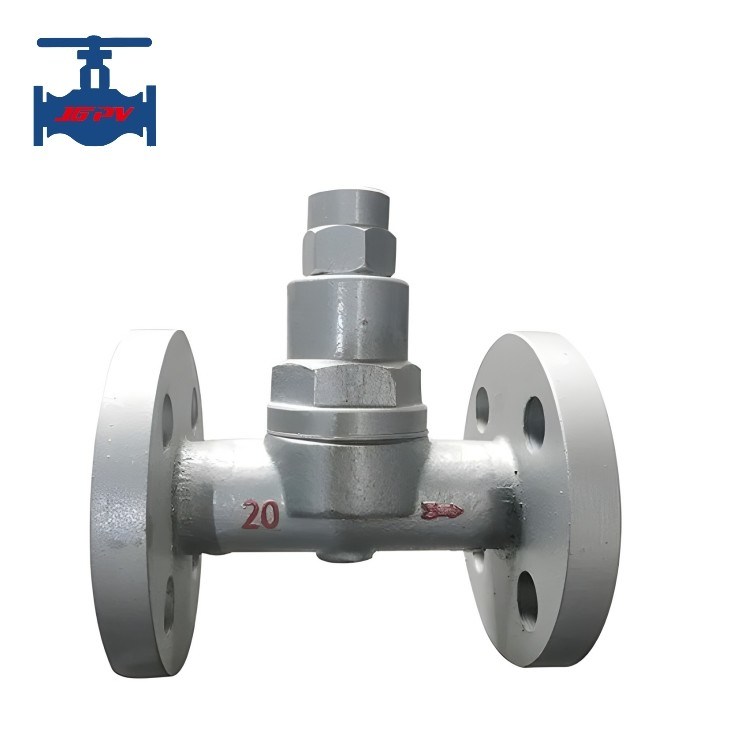

Adjustable Cast Steel Bimetallic Steam Trap with Large Drainage Capacity and Flange Connection

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Adjustable Steam Trap, Cast Steel Bimetallic Steam Trap, Large Drainage Capacity Flange Steam Trap


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Adjustable Cast Steel Bimetallic Steam Trap with Large Drainage Capacity and Flange Connection

Adjustable Bimetallic Cast Steel Flange Steam Trap

Product Introduction

The adjustable bimetallic strip steam trap features a unique structure with excellent performance characteristics. It offers large drainage capacity, adjustable steam leakage temperature, and a subcooling degree of approximately 2°C. This design effectively eliminates cold air and other non-condensable gases while preventing steam blockage. The replaceable internal components facilitate easy maintenance and adjustment.

Utilizing thermal sensing principles to discharge condensate, this steam trap efficiently handles large start-up loads. When system temperature and pressure increase, the stacked nickel chromium bimetallic components expand, causing the drain valve to close tightly when steam reaches it, thereby preventing steam loss and ensuring efficient system operation with energy savings.

Technical Parameters

Model/Project	CS17H-16C	CS17H-25	CS17H-40	Unit
CS47H-16C \| CS47H-25 \| CS47H-40	CS17H-16C	CS17H-25	CS17H-40	-
CS67H-16C \| CS67H-25 \| CS67H-40	CS17H-16C	CS17H-25	CS17H-40	-
Work Pressure	1.6	2.5	4	Mpa
Shell Test Pressure	2.4	3.8	6	-
Operating Temperature	203	220	247	℃
Permissible Temperature	425	425	425	℃
Working Medium	Steam and Condensate Water

Product Features

Check Valve Function: The valve ball immediately closes the discharge hole during pipeline backflow, eliminating the need for additional devices.
Exhaust Air and Water: Pipeline pressure or gravity opens the valve to rapidly expel air and water, significantly reducing heating time.
Condensate Discharge: Condensate gradually reduces the thermal tension of bimetallic components, causing the discharge hole to open progressively for smooth, unobstructed condensate removal.
