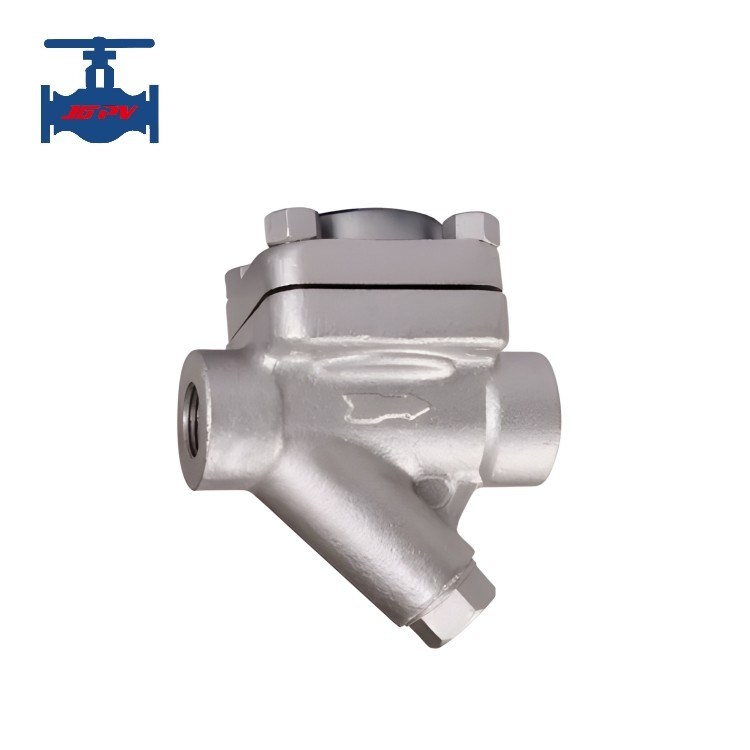

Thermostatic Membrane Steam Trap with Stainless Steel Construction Zero Leakage and High Back Pressure Rate

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Stainless Steel Construction Steam Trap Valve, Zero Leakage Bellows Steam Trap, High Back Pressure Rate Thermostatic Membrane Steam Trap


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Thermostatic Membrane Steam Trap with Stainless Steel Construction Zero Leakage and High Back Pressure Rate

Thermostatic Membrane Type Steam Trap

Product Overview

The bellows type steam trap vaporizes or condenses the temperature sensing liquid inside the bellows according to the temperature changes inside the valve chamber. The internal pressure of the bellows changes, driving the bellows to move the valve core to open and close the valve seat hole, achieving steam blocking and drainage.

This valve is currently widely used as a practical, energy-saving, and environmentally friendly drain valve. It is used for steam main pipelines in heating streams, small heating equipment, and material tracing in the petrochemical industry. It is the preferred drain valve for valve material tracing.

Technical Specifications

Parameter	1.6 MPa	2.5 MPa	4 MPa	Unit
Nominal Pressure	1.6	2.5	4	Mpa
Shell Test Pressure	2.4	3.8	6	-
Maximum Work Pressure	1.6	2.5	4	-
Maximum Operating Temperature	203	220	247	℃
Maximum Allowable Temperature	425	425	425	-
Working Medium	Steam and Condensate Steam

Key Features

Simple structure and easy maintenance
All components are made of alloy treated stainless steel, which is wear-resistant, corrosion-resistant, and has a long service life
Good air discharge capacity, quick drainage, and flexible installation method
Multiple membrane box combinations can be achieved, suitable for large displacement applications
Zero leakage, with a back pressure rate of over 75%

Product Gallery
