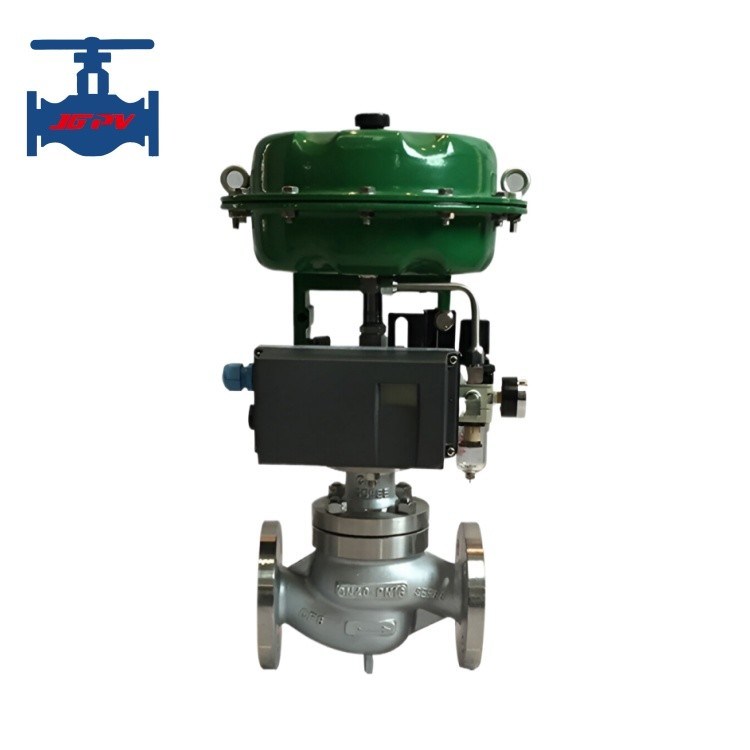

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Multi Spring Actuator Pneumatic Control Valve, Top Guide Structure Diaphragm Proportional Valve, S-shaped Fluid Channel Regulating Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Pneumatic Control Valve with Multi Spring Actuator and Top Guide Structure for S-shaped Fluid Channel

Pneumatic Control Valve, Hot Oil Steam Diaphragm Proportional Valve

Pneumatic control valve, hot oil steam diaphragm proportional valve

Product Introduction

The pneumatic diaphragm regulating valve consists of a multi spring pneumatic actuator and a regulating valve body. Adopting a top guide structure, it has the advantages of compact structure, light weight, sensitive action, S-shaped fluid channel, low pressure drop loss, large valve capacity, precise flow characteristics, and easy disassembly and assembly.

Widely used for precise control of process parameters such as gas and liquid media to maintain pressure, flow rate, temperature, and liquid level at given values. Especially suitable for situations where the allowable leakage is small and the pressure difference before and after the valve is not significant.

Technical Parameters

Parameter	Value
Basic deviation	+/-1.0%
Leakage rate	5x10-3 rated capacity
Return difference rated	1.0%
Rated flow coefficient	+/-10%
Dead zone	1.0%
Inherent flow characteristics	Slope +/-30%

Product Features

Adopting a balanced valve core structure, the axial unbalanced force is small, the allowable pressure difference is large, and the stability is good.
The sleeve has strong interchangeability, easy disassembly and assembly.
The all metal valve core structure achieves a soft sealing structure with IV level leakage and VI level leakage.
The valve body is designed according to the principles of fluid mechanics as an equal cross-section low flow resistance channel, with an inherent adjustable ratio of 50 and a 30% increase in rated flow coefficient.
The actuator adopts a multi spring structure, reducing the height by 30%. Reduce weight by 30%.
