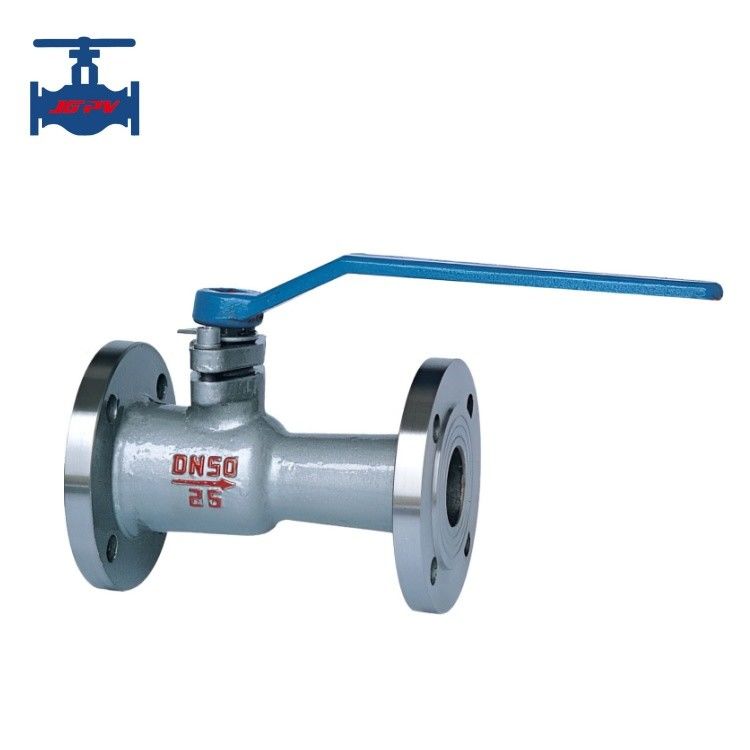

Blowdown ball valve

Highlight: Blowdown ball valve

Product introduction:

Blowdown valves are mainly used in the petrochemical and chemical industries. A blowdown valve directly relies on the force

generated by the medium pressure to assist in the mechanical load sealing acting on the valve disc. The mechanical load on

the valve disc mainly comes from a compression spring, which is an almost fixed mechanical load. Although for a compression

spring-loaded blowdown valve, good sealing can be achieved by adjusting the spring force, the sealing pressure difference

must be strong enough to ensure sufficient sealing force, thereby achieving sealing during normal valve operation. The

sealing pressure difference should also be less than the opening and closing pressure difference to ensure flexible opening.

The integral flange high-temperature blowdown ball valve is developed by absorbing the structure of foreign high-temperature

ball valves and combining domestic practices. Its connection dimensions comply with the national standards for blowdown

valves, featuring fast opening and closing, no flow resistance. The sealing ring inside the valve has advantages such as high

strength, high wear resistance, and strong resilience, so it has reliable sealing and a long service life. It is widely used in

industries such as petroleum and chemical engineering as a medium flow opener/closer for steam pipelines, etc. To prevent

damage to the sealing surface caused by fast medium flow velocity, the valve is required to be fully opened or fully closed

during use, and partial opening is not allowed.

Product technical parameters:

Product features:

1. The leak-free integrated high-temperature ball valve adopts the internationally advanced integral jet ball valve structure

in design, featuring small opening and closing torque, compact shape, and a small, beautiful appearance.

2. Both the valve seat and sealing parts are made of high-resilience, wear-resistant, pressure-resistant, high-temperature-

resistant, corrosion-resistant, and excellently lubricated flexible graphite materials with high strength and non-toxicity.

3. It adopts a double-channel combined seal with interference fit, which can be adjusted arbitrarily to ensure no leakage in

long-term use. The service life is more than ten times that of ordinary ball valves and globe valves.

4. The full-bore integrated high-temperature ball valve has a large flow rate and low loss.
