Fully Welded Turbo Integrated Ball Valve for Standard and Non-Standard Applications

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 100pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Fully Welded Ball Valve, Standard Applications Ball Valve, Non-Standard Applications Ball Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup	Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup
Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Fully Welded Turbo Integrated Ball Valve for Standard and Non-Standard Applications

Turbo Integrated Fully Welded Ball Valve

Key Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Q361F Turbo Floating Fully Welded Ball Valve is available in fixed ball and floating ball configurations, with the floating ball structure being standard. The valve maintains tight sealing through medium pressure against the outlet sealing surface.

Technical Parameters

Nominal Diameter DN (mm)	15~500
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4
Test Pressure (MPa)	Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M
	Valve ball: Stainless steel/Carbon steel
	Seat: PTFE
	Packing: Soft graphite
	Shaft: 2Cr13
	Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Fully welded valve body with carbon-reinforced Teflon gasket for long-life operation under demanding conditions
Finely ground stainless steel ball ensures years of reliable operation
Floating ball structure with inclined elastic sealing ring maintains tight sealing under unstable pressure
Anti-leakage valve stem design with dual "O" rings for tight sealing during rotation
Maintenance-free design with easy installation and low operating costs
Extendable valve stem for heat preservation applications
Reversible operating handle for flexible installation

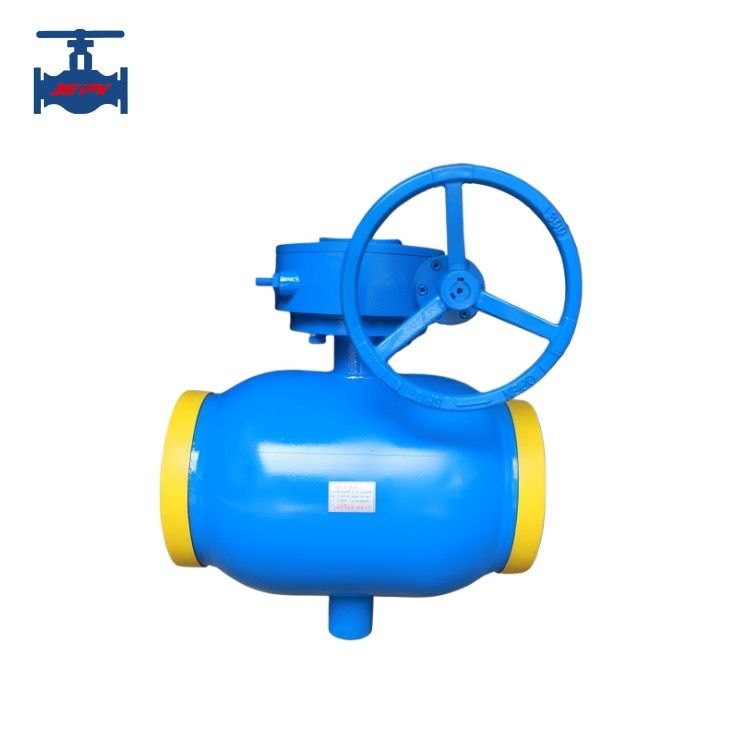

Product Images
