Water Medium Type Cast Iron Flange Gate Valve with Condensate Drain Function

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 100pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Condensate Drain Function Gate Valve, Condensate Drain Gate Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup	Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup
Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

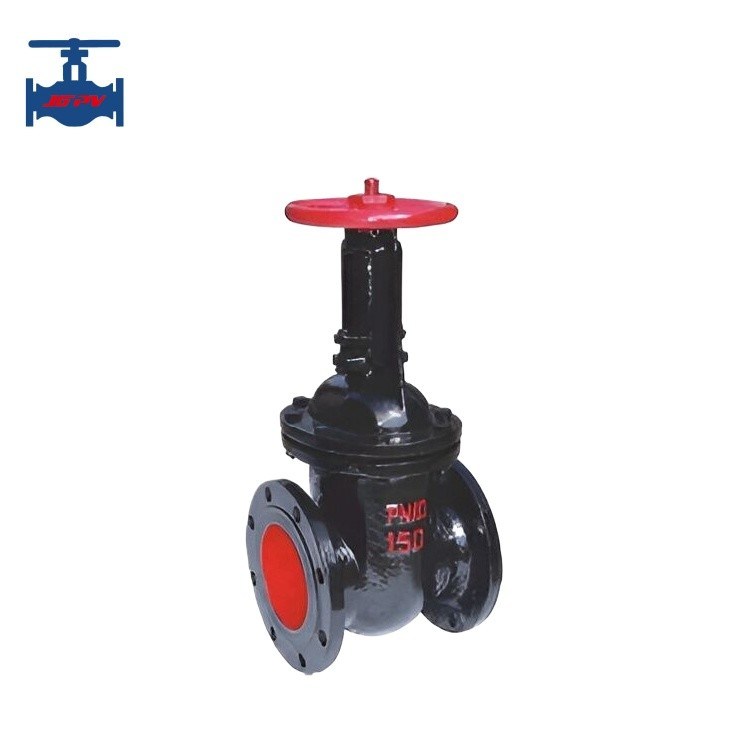

Water Medium Type Cast Iron Flange Gate Valve with Condensate Drain Function

Cast Iron Flange Gate Valve

Product Specifications

Application:	General
Certificate:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard Or Non-Standard:	Standard
Flow way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Gate valve operates like a gate, with movement direction perpendicular to fluid flow. Designed for full open/close operation only, not for flow adjustment or throttling.

This open stem gate valve features two brass sealing faces forming a wedge shape (typically 50° or 2°52' at normal temperatures). The rigid gate design is intended for pipeline installation as a closed circuit device, not for flow regulation or empty use.

Technical Parameters

Nominal Diameter DN (mm)	40~500
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Valve body: HT200 Bonnet & Disc: HT200 Stem: Carbon Steel Seal: Brass Packing: Oil-immersed asbestos
Working temperature	≤100℃
Medium suitable	Water and steam
Connection	Flanges connection

Key Features

Minimal fluid resistance with erosion-resistant sealing surfaces
Smooth operation for opening and closing
Unrestricted medium flow without turbulence or pressure reduction
Simple design with short structural length and proven manufacturing
