Sealing Performance Bevel Gear Wedge Gate Valve for Normal and High Temperature Environments

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 100pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Temperature Environments Wedge Gate Valve, Normal Temperature Wedge Gate Valve, Sealing Performance Wedge Gate Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup	Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup
Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

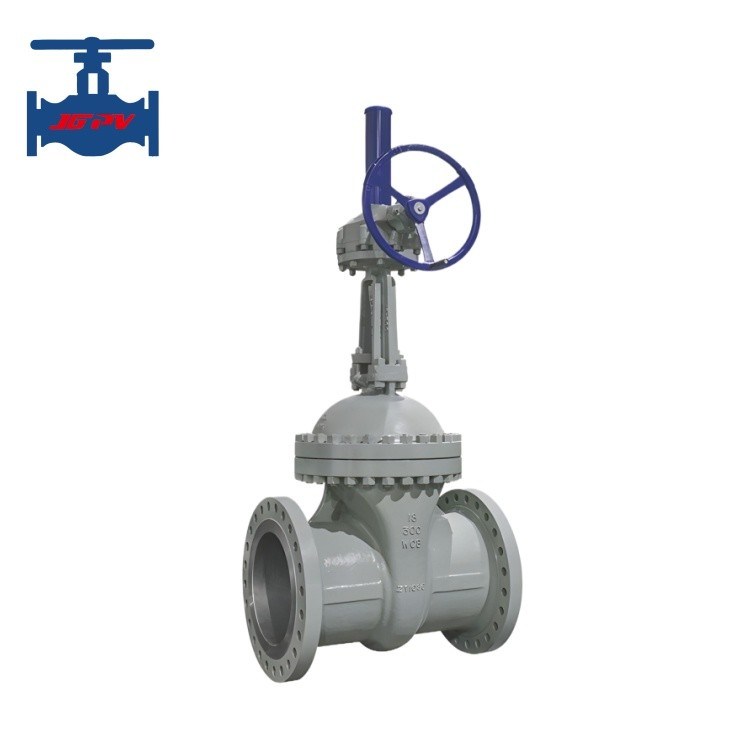

Sealing Performance Bevel Gear Wedge Gate Valve for Normal and High Temperature Environments

Bevel Gear Wedge Gate Valve

Product Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.

Technical Parameters

Nominal Diameter DN (mm)	15~200
Nominal Pressure PN (MPa)	1.6
Test Pressure (MPa)	Strength (water): 2.4 Enclose (Water): 1.76
Main Components	Body: WCB/CF8/CF8M Valve ball: Stainless steel/Carbon steel Seat: PTFE Packing: Soft graphite Shaft: 2Cr13 Handle: Ductile iron
Working temperature	≤150℃
Medium suitable	Water, oil, steam

Key Features

Compact structure, reasonable design, good valve rigidity, smooth flow channel, and small flow coefficient
The sealing surface is made of stainless steel and cemented carbide, ensuring a long service life
Flexible graphite packing is adopted, featuring reliable sealing and easy, flexible operation
The driving modes include manual, pneumatic, electric, and gear transmission
The structural forms are elastic wedge single gate, rigid wedge single gate, and double gate types

Product Images
