Water Medium Type Flange Gate Valve for Standard Applications

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Kemasan pengaman kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 100pcs per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Standard Applications Flange Gate Valve, Water Medium Type Flange Gate Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup	Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Fungsi::	Tiriskan kondensat
Koneksi::	Sambungan Sekrup
Jenis pemasangan::	Pemasangan Langsung
Standar atau tidak standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	Tekanan Normal
Garansi Kualitas::	18 bulan

Water Medium Type Flange Gate Valve for Standard Applications

Flange Gate Valve

Key Specifications

Application:	General
Certification:	ISO9001, ISO14001
Medium Type:	Water, steam and oil etc.
Function:	Condensate drain
Connection:	Screw connection
Mounting Type:	Direct Mount
Standard:	Standard
Flow Way:	Two way
Actuation:	Manual, Electric, Pneumatic, Automatic
Sealing Performance:	Sealing
Working Temperature:	Normal Temperature And High Temperature
Pressure Application:	Normal Pressure
Quality Warranty:	18 Months

Product Overview

Flange Gate Valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines and are widely used in various industrial applications.

Technical Parameters

Nominal diameter (mm)	15-300
Nominal pressure (MPa)	1.6
Test pressure (MPa)	Strength (Water): 2.4 Enclose (Water): 1.76
Main Components	Body: A216-WCB Bonnet: A216-WCB Stem: 2Cr13 Gasket: PTFE Packing: Soft graphite
Medium applicable	Water, steam and oil
Working temperature	-29℃～425℃
Connection way	Flange
Operational method	Hand wheel
Optional operation	Bevel gear, pneumatic and electric actuators

Key Features

Low flow resistance design
Reduced erosion of sealing surfaces
Compact structure with effortless operation
Bidirectional flow capability with no pressure reduction
Easy installation with flexible flow direction
Short structure with materials suitable for high temperature and pressure applications

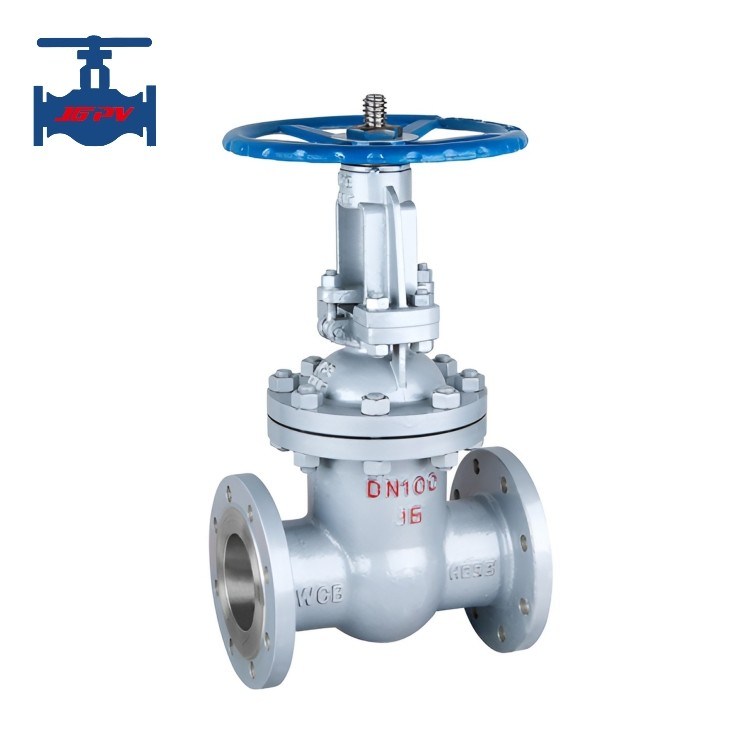

Product Images
