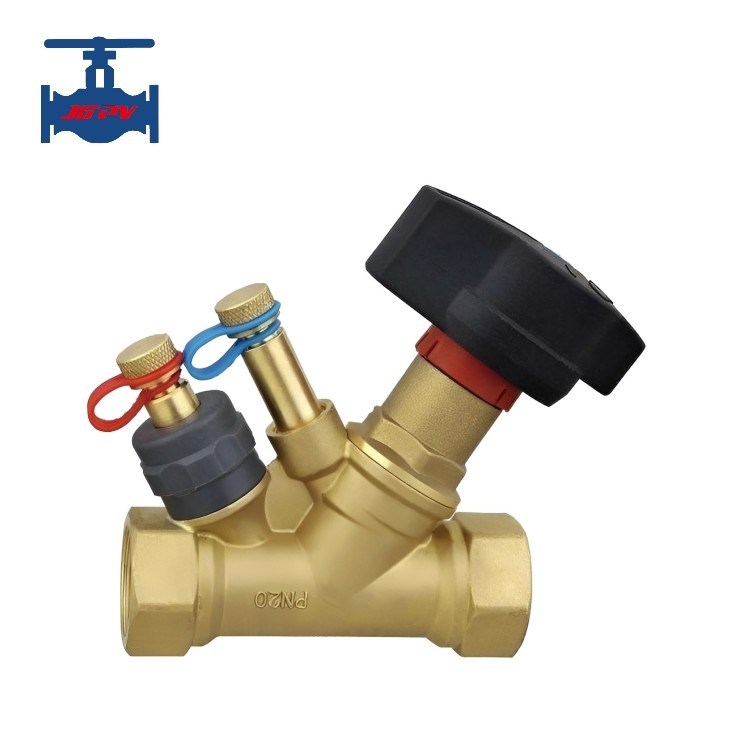

Brass Static Balance Valve with Threaded Connection and ISO9001 Certification for HVAC Systems

Rincian produk

Tempat asal: Cina

Nama merek: JGPV

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1set

Kemasan rincian: Pengepakan keamanan kotak kayu lapis

Waktu pengiriman: 14 hari

Syarat-syarat pembayaran: L/C,T/T,Western Union

Menyediakan kemampuan: 500 set per bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                Brass Static Balance Valve, Threaded Static Balance Valve, ISO9001 Certified Brass Valve


Aplikasi::	Umum	Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.	Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar	Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis	Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi	Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Aplikasi::	Umum
Sertifikat::	ISO9001, ISO14001
Tipe Menengah::	Air, uap dan minyak dll.
Koneksi::	Berulir / bergelang / dilas
Standar atau non-standar::	Standar
Cara mengalir::	Dua arah
Aktuasi::	Manual, listrik, pneumatik, otomatis
Kinerja Sealing::	Penyegelan
Suhu Kerja::	Suhu normal dan suhu tinggi
Aplikasi Tekanan::	tekanan normal
Garansi Kualitas::	18 bulan

Brass Static Balance Valve with Threaded Connection and ISO9001 Certification for HVAC Systems

Static Balance Valve - Brass Threaded Connection

Static Balance Valve Brass Threaded Thread

Product Overview

For static imbalance problems in HVAC systems, installing a balance valve with dedicated intelligent instrument debugging effectively eliminates residual pressure head in circuits, ensuring each loop achieves design flow rates.

This specialized function valve features excellent flow regulation characteristics with a linear relationship between relative flow rate and relative opening. It includes precise valve opening indication (minimum reading: 1% of full opening), reliable opening locking memory device, shut-off functionality, and quantitative measurement and adjustment capabilities.

Technical Specifications

Parameter	Value
Model	SP45F-16Q
Test Pressure	2.4 MPa (24 kgf/cm²)
Working Pressure	≤1.6 MPa (16 kgf/cm²)
Operating Temperature	-10℃ to 100℃
Media	Water
Characteristic Curve	Equal Percentage
Installation Scope	Main trunk lines, branch lines, indoor water supply mains, branch risers, and multiple boiler systems

Installation Requirements

Install sufficient length of branch pipe sections before and after the static balance valve to ensure rated flow output
Verify installation position per drawings; recommended installation on HVAC system return pipeline
Check pipeline water flow direction; install strictly according to valve body flow arrow direction
Thoroughly clean pipeline debris before installation; prohibit welding slag, branches, stones, and other debris
Avoid excessive deformation and welding angles during pipeline flange welding that affect sealing surface flatness
After installation, fully open valve for repeated pipeline flushing until clean; prohibit valve closure during flushing
